Point Supported Glass Guide: Structural Engineering & Design Reference

The architectural pursuit of pure transparency has historically been obstructed by the necessity of the frame. In traditional glazing assemblies, the metal perimeter—while structurally vital—serves as a visual interruption that reinforces the boundary between interior and exterior. Point Supported Glass Guide. The emergence of point-supported glass (PSG) systems represented a fundamental shift in this paradigm, moving away from continuous edge support in favor of discrete, localized mechanical attachments. This transition allowed architects to treat the building envelope not as a series of framed apertures, but as a continuous, crystalline skin.

However, the liberation from the frame introduces a suite of complex engineering challenges. By concentrating all structural loads—including wind pressure, seismic movement, and dead weight—into specific “points” on the glass pane, designers must account for extreme stress concentrations that would be non-existent in conventional curtain walls. The success of a point-supported system is therefore found at the intersection of material science and mechanical precision. It requires a deep understanding of tempered glass behavior, the elasticity of high-performance sealants, and the tolerances of stainless steel hardware.

This analysis serves as a definitive resource for understanding the mechanics, planning, and long-term viability of these transparent structures. We will investigate the historical shifts that moved PSG from niche experimentalism to a standard for flagship American architecture, the conceptual models used to mitigate structural risk, and the rigorous maintenance cycles required to ensure these systems remain safe over a fifty-year lifecycle. This exploration moves beyond the aesthetic allure of “spider glass” to analyze the systemic rigor required to make the invisible visible.

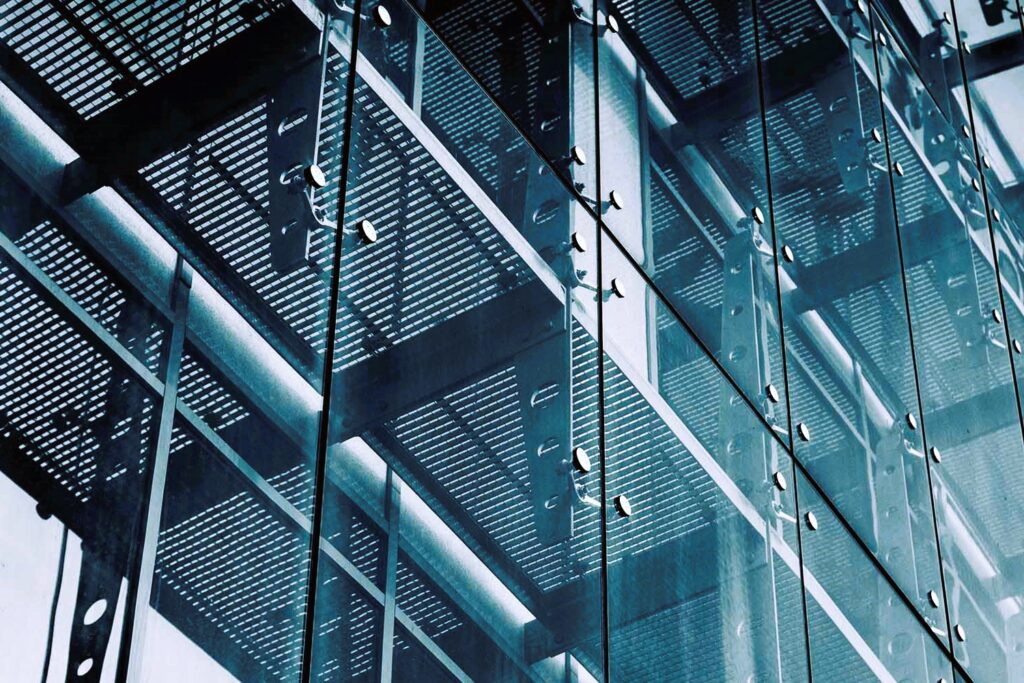

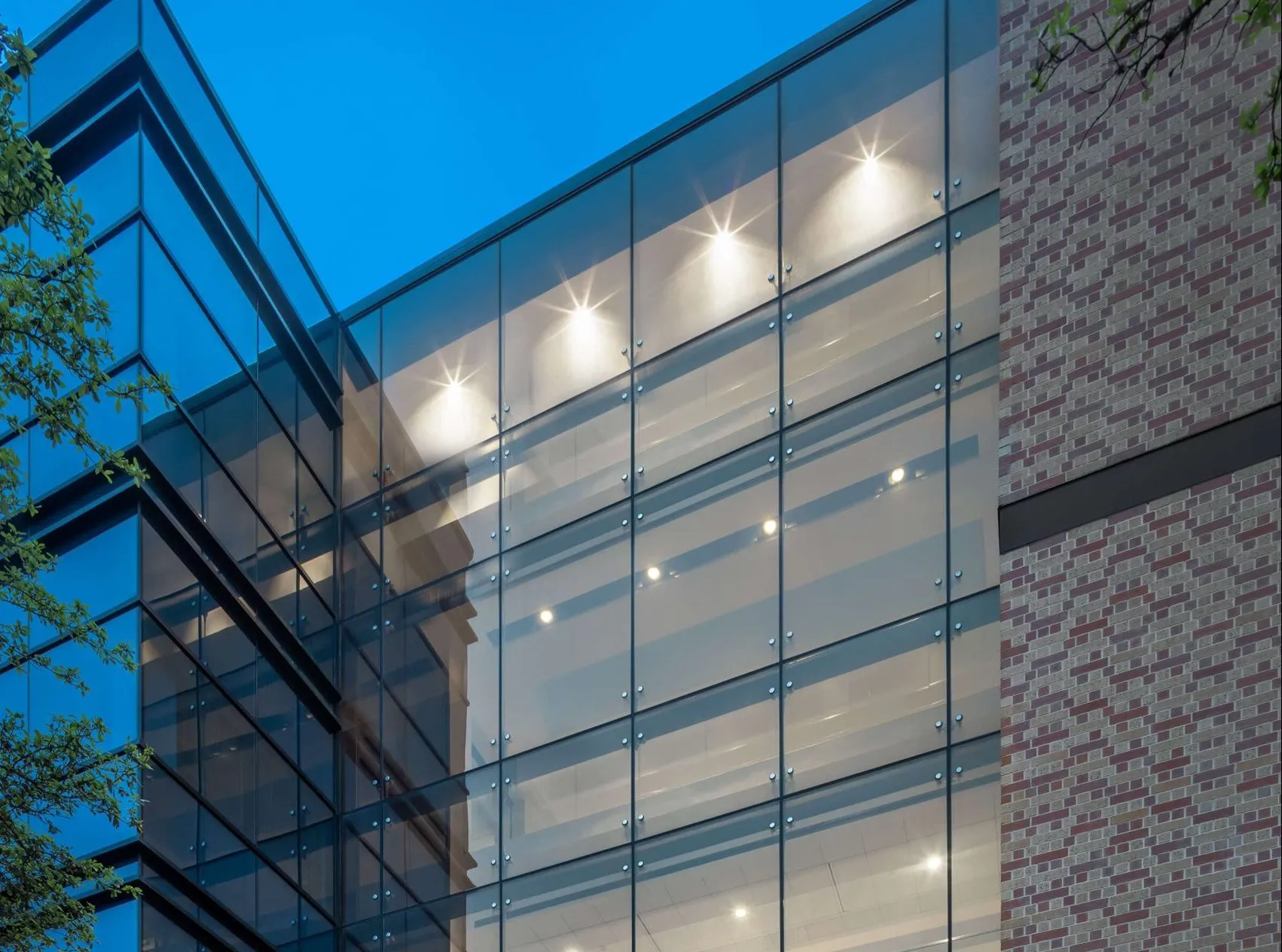

Understanding “point supported glass guide”

To utilize a point supported glass guide effectively, one must first dismantle the oversimplification that PSG is merely a “frameless” aesthetic choice. In reality, PSG is a sophisticated structural assembly where the glass serves as a stressed skin. Unlike a window in a frame, which is allowed to “float” within a gasket, a point-supported pane is mechanically coupled to the building’s primary or secondary structure. This coupling means that any movement in the building—deflection of a floor slab or thermal expansion of a steel beam—is directly transferred to the glass unless specifically mitigated by the hardware.

The risks of oversimplification in this domain are acute. Planners often focus on the “spider fitting” without considering the “articulation” of the bolt. If a bolt is rigid, it creates a leverage point that can cause the glass to shatter under wind load. A true high-performance system utilizes “rotules”—bolts with integrated ball-and-socket joints—that allow the glass to flex and rotate slightly, distributing stress away from the drilled hole. Therefore, a multi-perspective view of PSG must account for the micro-movements at the attachment point as much as the macro-movements of the facade.

Furthermore, the American context for PSG is governed by rigorous safety standards, particularly regarding “fall-out” protection. In most jurisdictions, point-supported glass must be laminated. This introduces a chemical variable: the compatibility between the lamination interlayer and the structural silicone used in the joints. Understanding these systems requires a shift from seeing glass as an infill to seeing it as a bespoke engineered component that must be meticulously coordinated with the metal hardware it inhabits.

Deep Contextual Background: The Evolution of the Connection

The trajectory of point-supported glass began as an exercise in structural minimalism during the mid-20th century. While the “curtain wall” was maturing, a small group of engineers began experimenting with suspended glass. The pivotal moment occurred in the late 1960s and early 70s, most notably with the work of Peter Rice and the design of the Willis Faber and Dumas building in the UK, followed by the landmark innovations at the Louvre Pyramid. These projects proved that glass could be hung from a top-supported rail and stabilized with “glass fins,” effectively using glass to support glass.

The 1980s and 90s saw the formalization of the “Spider” fitting. This cast-metal component allowed four separate glass corners to be joined to a single structural node. This was the era of “mechanical liberation,” where the American market began adopting PSG for high-end lobbies and atriums. However, early systems were prone to seal failure and glass breakage because they lacked the sophisticated articulation found in modern rotules.

In the current decade, the systemic evolution is focused on “Total Transparency.” We are seeing the rise of cable-net structures, where the glass is supported by a web of high-tension cables, and “jumbo” glass formats where single panes exceed 20 feet in height. The history of PSG is a move from heavy, visible metal connectors toward “micro-hardware,” where the goal is to make the connection point as small and unobtrusive as possible without compromising the safety factor.

Conceptual Frameworks and Mental Models

To navigate the selection and engineering of PSG, professionals rely on several mental models to prioritize safety and performance.

1. The “Degrees of Freedom” Framework

This model assesses how many ways a glass pane can move without hitting a rigid obstruction.

• Logic: A successful point-supported pane must be allowed to rotate and shift slightly in response to wind and heat.

• Limit: Too much freedom leads to “rattling” or seal failure; too little leads to breakage.

2. The “Load-Path Redundancy” Model

This framework assumes that any single component—a bolt, a pane, or a cable—could fail.

• Logic: If one “spider arm” fails, the remaining three must be capable of holding the pane in place until a repair can be made.

• Limit: Increases the weight and “bulk” of the hardware.

3. The “Thermal Bridge Management” Framework

Because PSG often uses metal bolts that pass through the glass from outside to inside, it creates a direct path for heat transfer.

• Logic: Use non-conductive bushings and thermal breaks within the rotule to prevent condensation inside the building.

• Limit: Can increase the diameter of the hole required in the glass, affecting structural integrity.

Key Categories and Hardware Variations

The categorization of PSG is defined by how the “points” are supported by the building.

System Type	Primary Support Structure	Primary Benefit	Trade-off
Glass Fin Supported	Vertical glass “fins” act as mullions.	Maximum transparency; no metal beams.	High weight; takes up interior floor space.
Steel Truss / Pipe	Horizontal/vertical steel members.	Cost-effective; high strength.	Visible structure can look “busy.”
Cable-Net	High-tension stainless cables.	Minimalist aesthetic; “floating” look.	Extreme loads on the building’s main frame.
Tension Rod	Pre-stressed solid rods.	Slimmer than pipes; more rigid than cables.	Requires precise tensioning during install.
Direct-to-Structure	Bolted to concrete or existing beams.	Simple; no secondary steel required.	Subject to the building’s primary movement.

Decision Logic: The Articulation Choice

A fundamental decision in any point supported glass guide is the choice between “drilled” and “clamped” systems.

• Drilled: The bolt passes through a hole. It is the most secure but creates the highest stress concentration.

• Clamped: The hardware grips the edge of the glass. It avoids drilling (preserving glass strength) but is visually more prominent.

Detailed Real-World Scenarios Point Supported Glass Guide

Scenario 1: The High-Altitude Atrium

A resort lobby in the Colorado Rockies utilizes a 40-foot tall PSG wall.

• The Conflict: Extreme wind gusts and temperature swings from -20°F to 70°F.

• Decision Point: Specifying “oversized” rotule housings to allow for the thermal expansion of the support steel.

• Failure Mode: If the rotules “freeze” (corrode or lock), the winter wind will shatter the glass due to lack of rotation.

Scenario 2: The Urban Retail Flagship

A high-end retail store in New York uses “jumbo” 10ft x 20ft panes.

• Constraint: The panes are so heavy they threaten to “creep” or slide out of their top-hung fittings over time.

• Decision Point: Using a “setting block” at the base of the glass to take the dead load, while the spider fittings only handle wind load.

• Second-Order Effect: This requires a larger bottom “U-channel,” slightly compromising the “frameless” look.

Planning, Cost, and Resource Dynamics

The economic reality of PSG is characterized by the “complexity premium.”

Component	Cost Est. (per sq ft)	Variability Factors
Tempered-Laminated Glass	$120 – $250	Low-iron content; size of pane; hole count.
Spider Fittings (Stainless 316)	$200 – $600 (Per Node)	Number of arms; finish (brushed vs. polished).
Rotules / Articulated Bolts	$80 – $150 (Per Point)	Thermal break technology; degrees of rotation.
Specialized Engineering	$15k – $50k (Total)	Finite Element Analysis (FEA) requirements.

Opportunity Costs

The largest variable is the “Tolerance Gap.” Standard construction has a tolerance of 1/4 inch; PSG requires a tolerance of 1/16 inch. The opportunity cost of a poorly planned PSG system is found in the “refabrication” cycle. If the holes in the steel do not match the holes in the glass, the glass cannot be “field-cut” to fit. It must be discarded, and a new pane must be ordered—a 12-to-16 week delay.

Tools, Strategies, and Support Systems

Successful PSG installation relies on specialized verification and handling tools.

1. Finite Element Analysis (FEA): Digital modeling that predicts exactly where the glass will stress around each bolt hole.

2. Laser Scanning (BIM Integration): Scanning the installed steel structure to “map” the exact location of the spider nodes before the glass is manufactured.

3. Suction-Cup Robots: Necessary for maneuvering heavy laminated panes into the precise position for bolting.

4. Calibrated Torque Wrenches: Ensuring every rotule is tightened to the exact foot-pound specified, preventing over-compression of the gaskets.

5. Digital Inclinometers: Checking the “plumb” of the cables or fins to ensure the glass weight is distributed evenly.

6. Load Cells: Used in cable-net systems to monitor the tension in the wires over time.

Risk Landscape and Failure Modes

The “taxonomy of failure” in PSG is centered on the mechanical connection.

• Nickel Sulfide (NiS) Inclusion: A tiny impurity that can cause tempered glass to shatter spontaneously. In PSG, this is catastrophic because the pane is often the structural stabilizer for the wall. Mitigation: Mandatory heat-soak testing.

• Bushing Degradation: The plastic sleeves that prevent the bolt from touching the glass can degrade under UV light. If the metal bolt touches the glass, the pane will shatter instantly upon the next wind event.

• Sealant Tearing: If the building moves more than the rotules allow, the silicone joints between panes will tear, leading to water intrusion.

• Galvanic Corrosion: Occurs when stainless steel spiders are attached to carbon-steel structures without a proper isolation gasket.

Governance, Maintenance, and Long-Term Adaptation

A point-supported facade is a dynamic machine that requires a documented governance plan.

Layered Maintenance Checklist

• Bi-Annual: Visual inspection of every rotule for “loose” bolts or signs of metal fatigue.

• Annual: Fresh-water rinse of the hardware to prevent salt-air pitting (critical in coastal regions).

• Every 5 Years: “Torque Audit”—checking a sample of bolts to ensure they haven’t loosened due to building vibration.

• Every 15-20 Years: Comprehensive replacement of all external silicone joints and internal gaskets.

Measurement, Tracking, and Evaluation

How do we quantify the health of a point supported glass guide-compliant system?

• Leading Indicators: The “deflection-to-span” ratio during a wind event. If the glass bows more than L/175, it may be under-engineered.

• Lagging Indicators: The number of panes requiring replacement due to “cracking at the hole” over a 10-year period.

• Qualitative Signals: The “acoustic profile” of the wall during a storm. A healthy PSG wall is silent; a failing one “creaks” or “pops” as the building shifts.

Common Misconceptions and Oversimplifications

1. “Any glass can be used”: False. Glass must be fully tempered and usually laminated. Heat-strengthened glass is often not rigid enough for point-supported applications.

2. “Spiders hold the weight”: Only partially true. Spiders primarily handle wind (lateral) loads. The “dead load” (weight) is often handled by specific “weight-bearing” bolts at the top or bottom.

3. “Holes don’t weaken glass”: Every hole is a structural weak point. The science of PSG is managing the stress around the hole.

4. “It’s easier to clean because there are no frames”: Actually harder. Dirt and minerals accumulate behind the spider arms and rotules, requiring specialized detailing.

5. “It’s just for looks”: PSG allows for much taller spans and higher wind loads than standard curtain walls by allowing the system to be “flexible” rather than rigid.

Conclusion

The mastery of point-supported glass is a testament to the maturation of modern engineering. It is a system that demands a deep respect for the physical limits of materials—the brittle nature of glass, the elasticity of polymers, and the rigidity of steel. As American architecture continues to push toward “invisible” envelopes, the standard for PSG will move beyond mere aesthetics toward “Performance Minimalism,” where the hardware becomes even smaller and the spans even larger. The successful architect and engineer must view the point supported glass guide not as a set of rules for a product, but as a framework for managing the permanent tension between transparency and gravity.
