How to Plan Safety Glass Upgrades on a Budget: A Professional Guide

The modernization of a building’s transparent envelope often focuses on thermal efficiency or aesthetic rejuvenation, yet the most critical mandate remains the mitigation of physical risk. Safety glass is not a singular product but a performance category defined by the glass’s behavior upon impact—specifically its ability to prevent lacerations, mitigate forced entry, or withstand seismic and wind-load stressors. How to Plan Safety Glass Upgrades on a Budget. In an era of fluctuating material costs and tightening facility budgets, the challenge for owners and managers is to reconcile the absolute necessity of life-safety compliance with the reality of fiscal constraints.

Upgrading to safety glazing is rarely an all-or-nothing proposition. It is a strategic exercise in risk stratification. The decision to replace entire insulated glass units (IGUs) versus applying high-performance security films or targeted secondary glazing requires a nuanced understanding of building codes, such as CPSC 16 CFR 1201 and ANSI Z97.1. These standards dictate “hazardous locations”—doors, sidelites, and large windows near floor level—where safety glazing is legally non-negotiable. Beyond these mandates, the planning process shifts into the realm of discretionary security and liability management.

This editorial analysis provides a comprehensive framework for navigating the economic and technical layers of glazing fortification. We move beyond simple “tips” to investigate the structural mechanics of tempered versus laminated glass, the logistical dynamics of phased retrofitting, and the long-term governance of safety assets. By treating the building’s glass as a prioritized risk landscape, professionals can achieve a high-performance safety profile without the prohibitive costs of a total system overhaul.

Understanding “how to plan safety glass upgrades on a budget”

The professional discourse regarding how to plan safety glass upgrades on a budget is frequently hampered by a binary view of glass: that it is either “safe” or “unsafe.” In reality, safety is a gradient of performance tailored to specific threats. A primary misunderstanding in budget-conscious planning is the assumption that total glass replacement is the only path to compliance. For many facilities, especially those with structurally sound existing frames, the use of “Safety and Security Film” (SSF) can provide the necessary impact resistance to meet Category II safety standards at a fraction of the cost of new laminated panes.

Oversimplification in this domain often leads to “compliance gaps.” Planners may focus on the cost per square foot while ignoring the labor-intensive nature of removing old putty or updating sash weights in historic windows. True budget-optimized planning requires a multi-perspective view that accounts for the “Total Installed Cost.” This includes the cost of the glass, the specialized labor for hazardous material handling (such as lead paint or asbestos glazing), and the potential for “secondary damage” during the replacement of delicate trim or molding.

Furthermore, we must account for the “phasing” of the project. Attempting to upgrade an entire campus or skyscraper in a single fiscal year often results in high mobilization fees and premium labor rates. A more sophisticated approach involves a “Risk-Areal” mapping, where the budget is allocated first to high-traffic “impact zones” and secondarily to perimeter security. Understanding how to plan safety glass upgrades on a budget therefore involves moving from a “product-based” procurement model to a “priority-based” engineering model.

Deep Contextual Background: The Evolution of Safety Standards

The history of safety glazing in the United States is a trajectory of tragedy-led legislation. Before the 1960s, “standard” plate glass was used in almost every residential and commercial application, including sliding doors and shower enclosures. The result was a massive number of severe lacerations and fatalities caused by the “guillotine” effect of large, jagged shards. This led to the 1977 mandate of CPSC 16 CFR 1201, which effectively required tempered or laminated glass in all hazardous locations.

The 1980s and 90s saw the maturation of “Tempered” glass—glass that is heated and rapidly cooled to create internal compression. While this made glass “safer” by causing it to break into small, relatively harmless crumbs, it did not address “forced entry” or “blast resistance.” This gap drove the development of “Laminated” glass, which borrows from automotive windshield technology, sandwiching a polyvinyl butyral (PVB) interlayer between two glass panes.

In the current era, the evolution is focused on “Resilience.” We are no longer just looking at accidental human impact; we are looking at “Active Shooter” mitigation and hurricane-force debris protection. The planning landscape has become more complex as building owners seek to balance these high-threat requirements with the need for energy efficiency. The modern safety glass upgrade is thus a three-way negotiation between safety (impact), security (breach), and sustainability (U-value).

Conceptual Frameworks and Mental Models

Navigating the financial constraints of safety upgrades requires frameworks that help prioritize the “unseen” risks.

1. The “Areal Hazard” Framework

This model categorizes every glass pane by its distance from the floor and its proximity to movement.

• Logic: Glass within 18 inches of the floor or 24 inches of a door is the “Red Zone.” Budget is spent here first, regardless of the glass’s current condition.

• Limit: Does not account for high-level glass that may pose a “fall-out” risk during a seismic event.

2. The “Substrate Continuity” Model

This model assesses whether the existing frame can actually support a safety upgrade.

• Logic: If you add 13mm laminated glass to a frame designed for 3mm single-pane, the frame may fail. Budget must account for “structural reinforcement.“

• Limit: In some cases, the cost of reinforcement exceeds the cost of a new window system.

3. The “Decoupled Performance” Model

This treats “Safety” and “Transparency” as separate variables.

• Logic: Using secondary glazing or security films allows the “safety” component to be replaced or updated without touching the “primary” building skin.

• Limit: Films have a shorter lifespan (10-15 years) than glass (30-50 years).

Key Categories: Material Variations and Trade-offs

A successful budget-aligned plan requires selecting the right material for the right risk profile.

Category	Cost Level	Benefit	Trade-off
Tempered Glass	Low – Mid	Strong; breaks safely into small pieces.	Cannot be cut on-site; no security value once broken.
Laminated Glass	High	Remains in frame after breaking; excellent security.	Heavy; susceptible to “edge delamination” in wet areas.
Security Film (8-12 mil)	Budget	Applied to existing glass; meets safety codes.	Susceptible to scratching; 10-15 year lifespan.
Polycarbonate / Acrylic	Mid	Virtually unbreakable; lightweight.	Scratches easily; can “yellow” under UV exposure.
Heat-Strengthened	Low	Twice as strong as annealed glass.	Not a “Safety Glass” (breaks into large shards).
Wired Glass (Laminated)	Mid	Fire-rated and safety-rated.	Aesthetic is “industrial”; higher cost than standard tempered.

Decision Logic: The Replacement vs. Retrofit Pivot

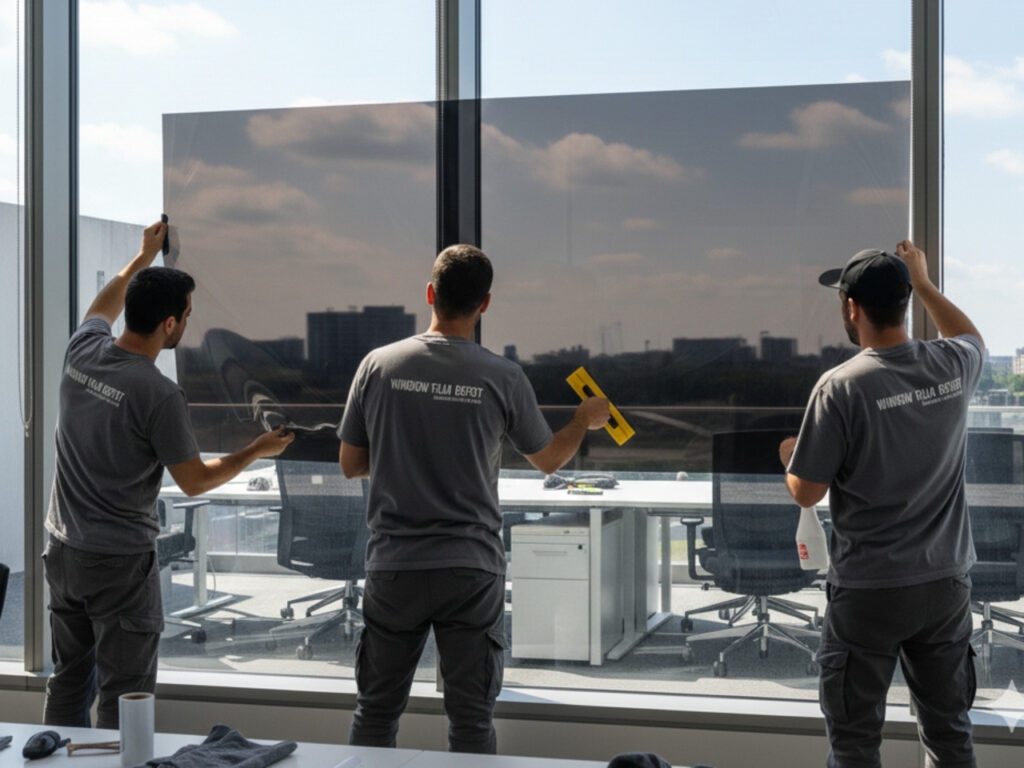

The most critical budget decision is whether to “pull the sash” or “apply the film.” If the primary goal is life-safety compliance for a Certificate of Occupancy, high-performance security film with an “attachment system” (wet-glazing the film to the frame with structural silicone) is the most cost-effective path. If the goal is long-term asset value and thermal performance, full replacement with laminated IGUs is the logical, albeit more expensive, choice.

Detailed Real-World Scenarios How to Plan Safety Glass Upgrades on a Budget

Scenario 1: The Multi-Story K-12 School

A school district with limited capital must upgrade 500 windows to meet new intruder-resistance guidelines.

• The Conflict: Full laminated replacement would cost $1.2 million; the budget is $300,000.

• Decision Point: Apply 12-mil security film to the lower 6 feet of all classroom windows and full laminated glass only to “first-contact” entry doors.

• Failure Mode: If the film is not “anchored” to the frame, a heavy impact will knock the entire pane (film and glass) out as a single sheet.

Scenario 2: The Historic Urban Office

A 1920s skyscraper requires safety glass to satisfy a new insurance mandate.

• Constraint: The original steel casement windows cannot be replaced due to landmark status.

• Decision Point: Interior secondary glazing (a second “window” installed behind the first).

• Outcome: Provides safety, acoustic dampening, and thermal insulation without disturbing the exterior historic fabric.

Planning, Cost, and Resource Dynamics

The economic volatility of safety glass is driven by the “Weight Premium” and “Lead-Time Bottlenecks.”

Upgrade Action	Est. Cost (per sq ft)	Resource Variability
Tempered Glass (Replacement)	$35 – $65	Local tempering oven availability.
Laminated Glass (Replacement)	$60 – $110	PVB vs. SentryGlas (SGP) interlayer costs.
Security Film + Anchoring	$15 – $25	Specialized labor (3M/Madico certified).
Secondary Glazing Systems	$50 – $90	Custom extrusion lead times.

Opportunity Costs and Variability

The primary hidden cost is “Scaffolding and Access.” For buildings over three stories, the cost of the glass is often less than the cost of the lift required to install it. A budget plan must consolidate work—upgrading safety glass at the same time as masonry repointing or window cleaning—to minimize these “soft costs” that can represent up to 40% of the project budget.

Tools, Strategies, and Support Systems

1. Glazing Audits: Utilizing a “Type Gauge” (a laser device) to determine which existing windows are already tempered without removing them.

2. Wet-Glaze Attachment Systems: Using structural silicone (e.g., Dow 995) to bond security film to the frame.

3. Risk-Heat Mapping: Using CAD overlays to identify “impact zones” across a facility.

4. Glass Thickness Calculators: Ensuring the upgrade doesn’t exceed the structural “dead-load” capacity of the existing building.

5. Acoustic Modeling: Leveraging the fact that laminated glass also reduces noise, potentially tapping into “acoustic improvement” budgets.

6. Edge-Deletion Tools: Necessary when using high-performance coatings on safety glass to prevent seal failure.

Risk Landscape and Failure Modes

The taxonomy of risk in safety glass upgrades is centered on “false security.”

• Spontaneous Breakage: Occurs in tempered glass due to Nickel Sulfide inclusions. Mitigation: Specify “Heat-Soak Testing,” though this increases budget by 10-15%.

• Edge Delamination: In laminated glass, if the edge is exposed to moisture in the window channel, the plastic interlayer will turn cloudy and separate.

• The “Dummy” Installation: Applying security film but failing to use an attachment system. The glass breaks safely, but the entire “sheet” falls inward, allowing entry.

• Incompatible Sealants: Using standard caulking on laminated edges, which can chemically attack the PVB interlayer and cause “bleeding.”

Governance, Maintenance, and Long-Term Adaptation

A safety upgrade is a life-safety asset that must be tracked in the building’s CMMS (Computerized Maintenance Management System).

Lifecycle Checklist

• Annual Audit: Check for “scratched” security film. A deep scratch in the film can become a “tear-point” during an impact.

• Sealant Inspection: Ensure the structural silicone bonding the glass to the frame hasn’t become brittle or lost adhesion.

• Logo Verification: Every piece of tempered glass must have a permanent “bug” (etching) in the corner. If the etch is missing, the glass is not legally “safety glass.”

• Adjustment Triggers: If a door’s “closing speed” changes, it may be due to the increased weight of the new safety glass. Re-calibrate the closers immediately to prevent “slam-breakage.”

Measurement, Tracking, and Evaluation

• Leading Indicators: The “Compliance Percentage” of windows in hazardous locations.

• Lagging Indicators: Number of “injury-free” glass breakages over a 5-year period.

• Documentation Example: A “Glazing Schedule” that maps every pane to its specific safety rating (e.g., “Pane 402: 1/4″ Laminated, Cat II”).

Common Misconceptions and Oversimplifications

1. “Plexiglass is a great budget safety glass”: While it won’t break, it is a fire hazard in many jurisdictions and scratches easily, leading to a “cloudy” building within two years.

2. “Safety glass is bulletproof”: Standard 1/4″ laminated glass will stop a brick, but not a bullet. “Ballistic” glass is a separate, much heavier, and more expensive category.

3. “Film is just for old windows”: Film is often applied to new tempered glass to provide the “hold-in-place” benefits of laminated glass at a lower price point.

4. “Wired glass is safety glass”: Traditional wired glass (not laminated) is actually more dangerous than plate glass. It is being phased out of codes across the US.

5. “You can temper glass on-site”: Tempering is a factory process. Once glass is tempered, it cannot be cut or drilled.

Conclusion

Mastering how to plan safety glass upgrades on a budget is a study in “Strategic Resilience.” It requires moving away from the “total replacement” dogma toward a nuanced application of films, secondary systems, and prioritized glass replacement. By focusing on “Hazardous Locations” first and leveraging attachment systems to fortify existing assets, building owners can achieve high-performance safety standards that are both legally compliant and financially sustainable. The goal is a building that is “visibly transparent but structurally silent”—a structure where the safety of the occupants is guaranteed by the invisible intelligence of the planning process.
