Structural Glazing Plans: An In-Depth Editorial & Engineering Guide

The modern urban skyline is a testament to the triumph of glass over stone. Where early twentieth-century architecture relied on heavy masonry to bear the weight of a structure, contemporary design has shifted toward a paradigm of lightness and transparency. This shift is made possible by structural glazing—a sophisticated method of bonding glass to a building’s structural frame using high-strength sealants or specialized mechanical fixings. Structural Glazing Plans. The resulting aesthetic is one of seamless continuity, but the technical reality behind these “glass skins” is a labyrinth of thermal physics, structural engineering, and chemical compatibility.

Developing robust structural glazing plans requires more than just an eye for design; it requires a deep understanding of how a building breathes and moves. Glass is an unforgiving material. Unlike steel, which yields under stress, glass is brittle and prone to catastrophic failure if the forces acting upon it—wind loads, thermal expansion, seismic shifts—are not precisely managed. A successful plan acts as the bridge between the architect’s vision of invisibility and the engineer’s requirement for absolute safety.

The current landscape of facade engineering is increasingly defined by the dual pressures of aesthetic minimalism and aggressive energy performance targets. As building codes tighten and sustainability certifications like LEED or BREEAM become the baseline for “Class A” office space, the role of the glazing plan has evolved. It is no longer just a set of shop drawings; it is a life-cycle strategy that dictates the building’s operational efficiency, occupant comfort, and long-term resale value.

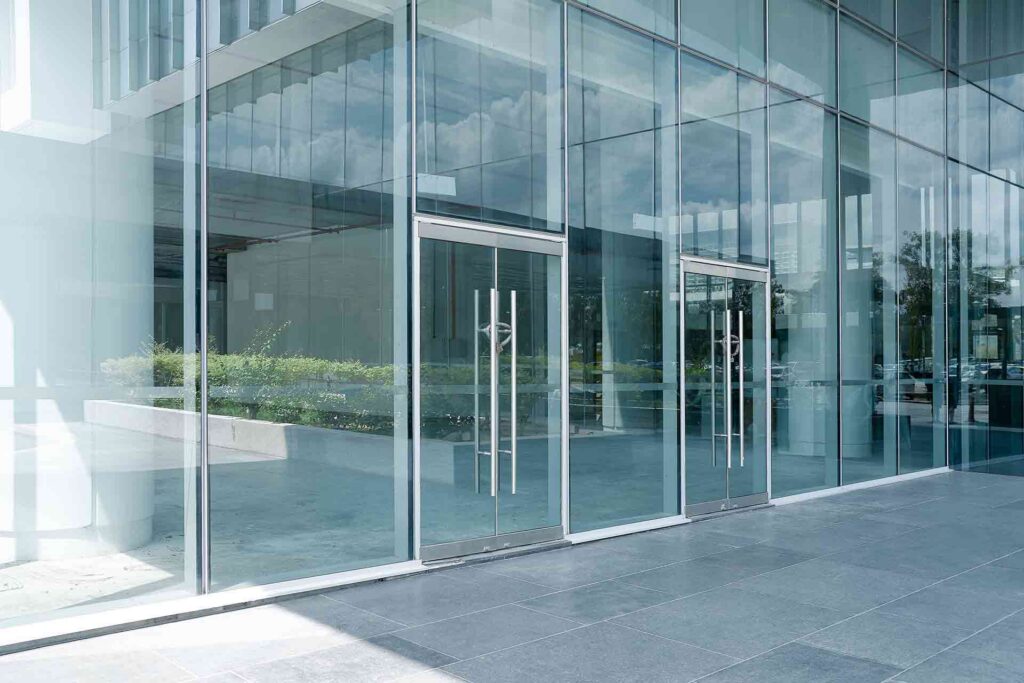

Understanding “structural glazing plans”

At its most fundamental level, the creation of structural glazing plans involves the formalization of the interface between the glass pane and the building’s primary structure. While traditional glazing “captures” the glass within a metal frame, structural glazing utilizes the adhesive properties of silicone—or the mechanical strength of specialized hardware—to transfer loads. This fundamental shift in load-bearing mechanics means that the “plan” is actually a multi-disciplinary document covering chemical adhesion, structural calculations, and logistical coordination.

A common misunderstanding in the early design phases is the assumption that structural glazing is a purely aesthetic upgrade. In reality, a well-executed plan can improve a building’s thermal performance by eliminating “thermal bridges” (metal components that conduct heat) and can enhance seismic resilience by allowing the glass to move independently of the frame. However, the risk of oversimplification is high; without a rigorous plan, projects often fall victim to “sealant fatigue” or “thermal stress cracking,” leading to expensive remediation years after the building is occupied.

Furthermore, the “plan” must account for the environment in which the glass will exist. A structural glazing plan for a high-rise in a tropical, high-wind zone like Hong Kong will look radically different from one for a low-rise boutique in a temperate climate like London. The former must prioritize dynamic wind-load resistance and UV-stability for the silicone bonds, while the latter might focus on maximizing visible light transmission and acoustic dampening. Mastery in this field lies in recognizing these contextual variables before the first lite of glass is ordered.

Deep Contextual Background: The Shift from Skin to Structure

The history of glass in architecture is one of increasing autonomy. In the Victorian era, glass was restricted by the size of the panes that could be hand-blown or cast. The invention of the “float glass” process in the mid-1950s by Alastair Pilkington changed everything, providing the industry with perfectly flat, clear sheets of nearly unlimited length. However, even with float glass, the industry remained tethered to the “curtain wall”—a metal grid that held the glass in place like a picture frame.

The true breakthrough for structural glazing plans came from the chemical industry, specifically the development of high-modulus structural silicones in the 1960s and 70s. These elastomers provided a bond that was flexible enough to accommodate building movement but strong enough to hold thousands of pounds of glass in place against hurricane-force winds. This allowed architects to move the aluminum mullions behind the glass, creating the “all-glass” look that defined late-twentieth-century corporate modernism.

Today, we are witnessing a third wave of evolution: the integration of “smart” technology. Modern plans now incorporate electrochromic layers that tint on demand, vacuum-insulated glass (VIG) that achieves R-values previously reserved for solid walls, and bird-friendly frit patterns. We have moved from glass as a passive barrier to glass as an active, structural participant in the building’s metabolic system.

Conceptual Frameworks and Mental Models

To organize the complexity of a glazing project, professionals use several mental models to categorize priorities:

• The Adhesion-to-Mechanical Spectrum: This model weighs the pros and cons of “wet” glazing (silicone-based) versus “dry” glazing (mechanical fixings). Wet glazing offers better weather sealing and a smoother look, while dry glazing offers easier replacement of broken units and clearer accountability for structural loads.

• The Lifecycle Energy Balance: This treats the glass as a thermal valve. It balances the “Solar Heat Gain Coefficient” (SHGC) against the “Visible Light Transmission” (VLT). A plan that lets in too much light might overheat the building, while a plan that blocks too much heat might necessitate excessive artificial lighting.

• The Redundancy/Fail-Safe Logic: In high-risk environments, a plan must assume that a bond will fail. This framework focuses on “dead-load” supports—small metal clips or seats that remain hidden but will catch the glass lite if the silicone bond is ever compromised by fire or chemical degradation.

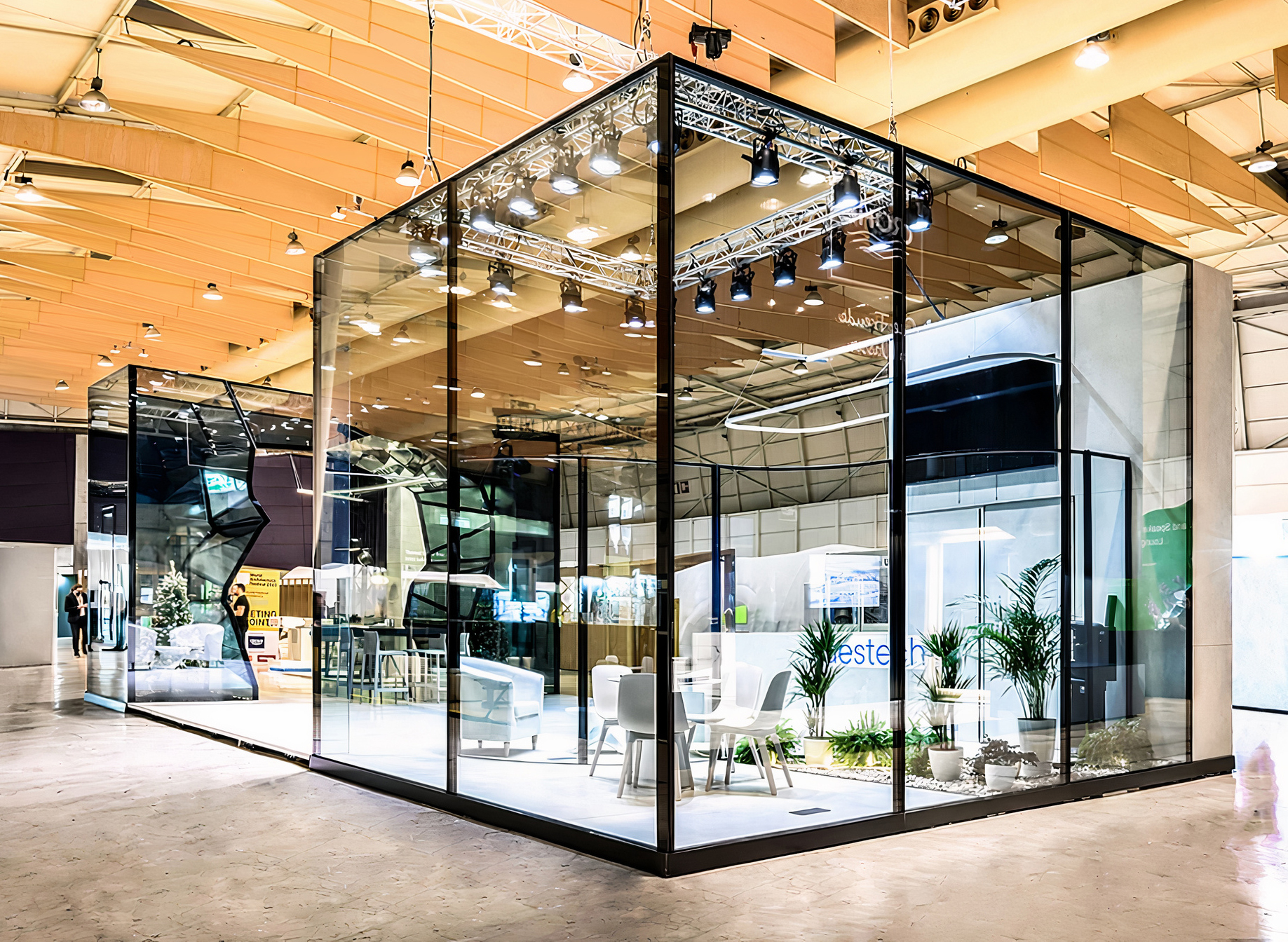

Key Categories and Variations

Systems are generally categorized by how they are assembled and how the glass is supported. Each has a distinct impact on the overall structural glazing plans.

Comparison of Primary Structural Glazing Architectures

System Type	Assembly Method	Best For	Structural Integrity	Aesthetic Profile
Unitized SSG	Factory-built modules	High-rise towers	High (QC controlled)	Monolithic
Stick-Built SSG	Site-assembled	Low/Mid-rise	Variable (Site conditions)	Modular
Point-Supported	Mechanical bolts/spiders	Atriums/Lobbies	Very High	High-tech/Industrial
Glass Fin System	Glass-on-glass beams	Flagship retail	Exceptional	Total transparency
Total Vision System	Patch fittings	Interior partitions	Moderate	Minimalist

The choice between a Unitized and a Stick-Built system is often a logistical one. A unitized system, where the glass is bonded to the aluminum frame in a controlled factory environment, is the gold standard for quality control but requires heavy cranes and precise site access. Stick-built systems are more flexible for complex geometries but are highly dependent on the skill of the installers and the weather conditions on the day the silicone is applied.

Detailed Real-World Scenarios Structural Glazing Plans

Scenario A: The High-Altitude Corporate Atrium

A project in a mountain city faces extreme pressure differentials between the interior and exterior environments.

• The Plan: The team must specify “capillary tubes” in the Insulating Glass Units (IGUs) to prevent the glass from bowing or shattering during transport to high altitudes.

• Failure Mode: If these tubes are not properly sealed upon arrival, the argon gas escapes, leading to permanent fogging inside the units.

Scenario B: The Coastal Luxury Hotel

Located in a hurricane zone, the facade must resist high-velocity wind-borne debris.

• The Plan: A laminated glass specification with a SentryGlas (ionoplast) interlayer, which is 100 times stiffer than standard PVB, ensuring the glass stays in the opening even if both lites are shattered.

• Second-Order Effect: The extreme weight of the laminated glass requires more robust aluminum anchors, which can increase the “shadow line” or visibility of the internal frame.

Planning, Cost, and Resource Dynamics

The financial framework of structural glazing is sensitive to “overspecification.” Adding a triple-silver Low-E coating to every lite may seem like a good idea for energy, but it can create “color shift” issues that are expensive to fix if the batch consistency isn’t perfect.

Estimated Cost Breakdown by Project Phase

Component	Percentage	Primary Cost Driver
Engineering & Modeling	10% – 15%	Custom FEA (Finite Element Analysis)
Glass Fabrication	30% – 40%	Coating type and “jumbo” sizing
System Anchors/Frames	20% – 25%	Aluminum pricing and thermal breaks
Logistics & Lifting	10% – 15%	Site crane hire and storage
Field Labor/QC	15% – 20%	Local labor rates and sealant testing

Indirect costs often include the “opportunity cost” of long lead times. High-performance coatings can take 16-20 weeks for fabrication. If a structural glazing plan does not account for this in the critical path of the construction schedule, the entire project can be delayed by a single broken pane on-site.

Tools, Strategies, and Support Systems

Modern glazing planning is a data-driven discipline. No longer is a “rule of thumb” sufficient for high-performance buildings.

1. Finite Element Analysis (FEA): Used to simulate how stresses are distributed around point-supported holes or along a silicone bite.

2. LBNL THERM/WINDOW: Industry-standard software for calculating center-of-glass versus edge-of-glass U-values.

3. Adhesion/Compatibility Testing: A mandatory step where samples of the actual glass, aluminum, and gaskets are sent to a lab to ensure the structural silicone will bond permanently without chemical “bleed.”

4. Visual Mock-ups (VMU): A 1:1 scale section of the facade built to verify the color, transparency, and reflection under different light conditions.

5. Wind Tunnel Testing: For buildings over 40 stories, a physical model is placed in a wind tunnel to determine the “peak pressures” that the glass must withstand.

Risk Landscape and Failure Modes

The primary risk in structural glazing is “latent failure”—defects that don’t appear for 5 to 10 years.

• Nickel Sulfide (NiS) Inclusions: Microscopic impurities in tempered glass that can expand over time, causing spontaneous breakage. Structural glazing plans for high-end projects often require “Heat Soak Testing” to force these failures in the factory rather than on the building.

• Sealant “Reversion”: When incompatible materials (like a certain gasket and a certain silicone) touch, they can chemically react, turning the solid silicone back into a liquid-like state.

• Thermal Stress Cracking: When one part of a glass pane is in deep shade and another is in hot sun, the temperature differential can cause the glass to expand unevenly and crack.

Governance, Maintenance, and Long-Term Adaptation

A facade is not a static object; it is a system with a lifecycle of 30 to 50 years. Governance involves creating a “Close-out Manual” that provides the owner with a roadmap for maintenance.

The Layered Maintenance Checklist:

• Bi-Annually: Professional cleaning using non-abrasive, pH-neutral cleaners. Abrasive cleaners can strip the delicate Low-E coatings.

• Every 5 Years: A structural engineer should perform a “drop test” or “pull test” on sample silicone bonds to ensure they haven’t degraded due to UV exposure.

• Replacement Triggers: If more than 3% of the IGUs show signs of “fogging” (internal condensation), it indicates a systemic failure of the primary seal.

Measurement, Tracking, and Evaluation

How do you track the success of structural glazing plans after the building is occupied?

• Leading Indicators: Thermal imaging (infrared) during winter to check for heat leaks; occupant comfort surveys regarding glare.

• Lagging Indicators: Total energy expenditure for cooling; frequency of glass breakage incidents.

• Documentation: A digital twin of the facade, where every glass lite has a unique ID number and a record of its fabrication batch, allowing for easy replacement if a unit fails.

Common Misconceptions and Oversimplifications

• Myth: Structural glazing is “just for looks.”

  • Correction: It provides significant performance benefits, including better seismic movement and higher thermal resistance due to reduced metal exposure.

• Myth: All silicone is the same.

  • Correction: Structural silicone is a different chemical beast than “weather-seal” silicone; they cannot be substituted.

• Myth: Triple-glazing is always better.

  • Correction: In many climates, the extra weight and cost of triple-glazing do not offer a ROI compared to a high-performance double-glazed unit with a high-end coating.

• Myth: Glass is a solid.

  • Correction: Scientifically, glass is often treated as an amorphous solid, but for engineering, it is a brittle elastic material that does not “give” before it fails.

Conclusion

The successful implementation of structural glazing plans is the ultimate balancing act. It requires the precision of a chemist, the logic of a structural engineer, and the vision of an architect. As our cities grow denser and our climate more volatile, the transparency of our buildings will depend entirely on the strength of the invisible bonds we design today. A superior plan is one that recognizes the fragility of its materials and builds in the redundancy and intelligence necessary to last for generations. In the final analysis, the best glazing is the one you don’t notice—it performs its structural duty silently, allowing the world outside to become part of the experience inside.
